Introduction
In the manufacturing industry, sand casting and investment casting are two widely used metal forming processes. Both techniques can transform complex designs into physical parts, but they differ significantly in terms of process workflow, material options, surface finish, production efficiency, and cost structure.
For engineers, procurement managers, and project leaders, choosing the right casting method not only affects a product’s performance and appearance but also has a direct impact on project timelines and budgets. This article provides a systematic comparison of investment casting and sand casting from multiple perspectives—covering principles, characteristics, and practical considerations—to help you select the most suitable process for your next project and make smarter manufacturing decisions.
I. What is Sand Casting?

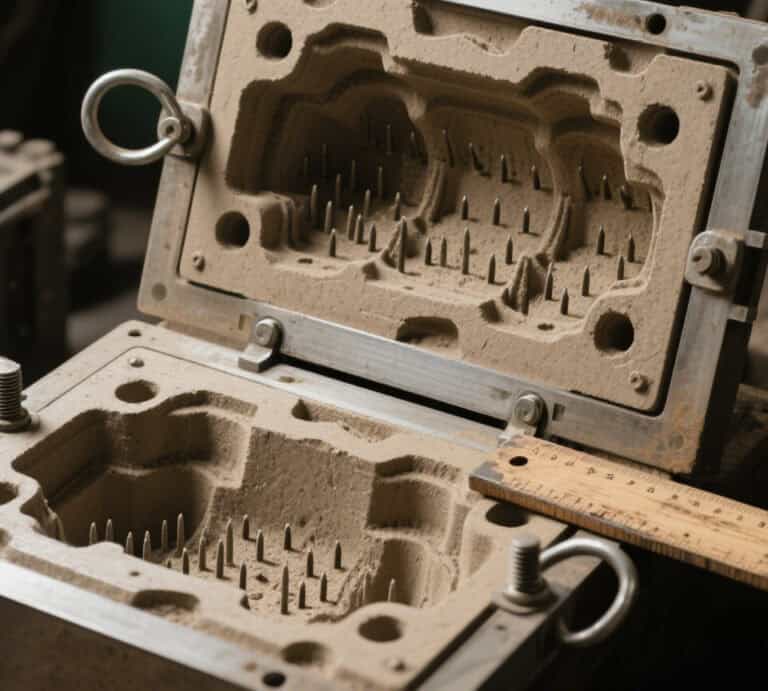

Sand casting is a metal casting process that uses sand as the primary material to create molds. The principle is straightforward: molten metal is poured into a sand mold, allowed to cool and solidify, and then removed to form a raw casting. This method is highly versatile and can accommodate almost any metal, including copper alloys, aluminum alloys, cast iron, cast steel, and stainless steel.
The sand casting process follows a systematic workflow. It begins with mold preparation based on the engineering drawing, as the mold’s accuracy directly impacts the quality of the sand mold. Next, a mixture of sand is compacted into the mold to create the mold cavity. Once the sand mold is completed, the mold halves are assembled and secured, forming a complete gating system and cavity. Molten metal is then poured into the mold through the gating system, filling the cavity completely. As the metal cools and solidifies, the casting gradually takes shape.
After cooling, the sand mold is broken apart to extract the casting in a process known as shakeout. The casting then undergoes cleaning to remove gates, risers, and excess material. Depending on requirements, additional processes such as heat treatment or machining may be applied to achieve the desired final properties. Every step in the sand casting process is interconnected, and each directly affects the casting’s dimensional accuracy and overall performance.
Advantages of Sand Casting
- High adaptability: Capable of producing very large castings.
- Cost-effective: Low process cost with good economic efficiency.
- Simple equipment requirements: Can be implemented in production environments of various scales.
- Short production lead time: Typically completed within 7 days from scheduling to delivery.
Limitations of Sand Casting
- Lower surface finish and dimensional accuracy: Often requires secondary machining.
- Wear on patterns and molds: Can affect repeatability over multiple uses.
- Production time dependent on mold and sand preparation: The pace of casting is influenced by mold-making and sand preparation steps.
II. What is Investment Casting?
Investment casting, also known as lost-wax casting, is a metal casting process capable of producing high-precision parts with complex geometries. This process works with a wide range of metals and alloys, including stainless steel, carbon steel, aluminum alloys, copper alloys, and titanium alloys, meeting diverse requirements for strength, corrosion resistance, and weight.
The process typically involves several key steps. First, a master mold is created based on the design drawing, often made from aluminum. Using a wax injection machine, precise wax patterns are produced, and the surface quality of these wax patterns directly determines the final part’s dimensional accuracy and surface finish. Next, multiple layers of refractory ceramic material are applied over the wax pattern to gradually build a strong ceramic shell, ensuring sufficient strength and heat resistance during metal pouring.
Once the ceramic shell is formed, the wax inside is melted out in a process called dewaxing, leaving a hollow cavity. Molten metal is then poured into the ceramic cavity, filling it completely. After the metal cools and solidifies, the ceramic shell is broken away, and the casting undergoes cleaning and any required post-processing. The result is a finished part with high dimensional accuracy and excellent surface finish.
Advantages of Investment Casting
- High dimensional accuracy: Reduces the need for secondary machining.
- Excellent surface finish: Minimizes polishing and finishing work.
- Capable of complex geometries: Can produce parts with intricate shapes and fine internal structures.
Limitations of Investment Casting
- Higher cost compared to sand casting: The process and materials are more expensive.
- Longer lead time: Typically requires more than 20 days from scheduling to delivery, making it less suitable for projects with tight deadlines.
III. Investment Casting vs. Sand Casting
Although both investment casting and sand casting are metal casting processes, they differ significantly in terms of precision, surface finish, cost, size adaptability, and production volume. The table below highlights the key differences:
| Comparison Dimension | Snad Casting | Investment Casting |
|---|---|---|
Dimensional Accuracy |
Lower, tolerance ±0.5 mm or more |
High, tolerance up to ±0.1 mm |
Surface Finish |
Ra 6.3–25 μm |
Ra 1.6–6.3 μm |
Part Size |
Small to very large |
Small to medium |
Geometric Complexity |
Limited by sand mold and cores; lower complexity |
Capable of complex shapes |
Material Range |
Almost all common casting metals |
Wide range, especially high-performance alloys |
Mold Cost |
Low |
High |
Production Volume |
Low to medium |
Medium to high |
Lead Time |
Relatively short, especially for prototypes and small batches |
Longer |
IV. When to Choose Sand Casting
Sand casting is particularly suitable for large parts, low-volume production, or metals with high melting points due to its low mold cost, process flexibility, and wide size adaptability.
Recommended Applications:
- Complex structural parts: Such as aerospace turbine blades, medical device components, and high-precision pump and valve parts.
- High-precision requirements: Parts requiring tight tolerances, accurate hole locations, and uniform wall thickness.
- High surface quality needs: Achieves smooth surfaces directly, minimizing polishing and finishing work.
- Low to medium-volume production: Suitable for batch production or high-value parts.
Not Recommended For:
- Oversized or very heavy parts.
- Very high-volume production requiring rapid output.
- Projects sensitive to lead time or cost, where high mold expenses cannot be justified.
VI. Recommended Decision Framework
When choosing between investment casting and sand casting, six key factors should be considered: part size, geometric complexity, material type, production volume, precision requirements, and budget. The table below provides a simplified reference to guide early-stage decision-making.
| Consideration | Investment Casting | Sand Casting |
|---|---|---|
Part Size |
Suitable for small to medium parts |
Better for large or very large parts |
Geometric Complexity |
Capable of complex structures and intricate details |
Suited for simple structures or parts with varying wall thickness |
Material Type |
Ideal for high-performance alloys |
Commonly used for cast iron, steel, copper, and other standard metals |
Production Volume |
Economically feasible for low to medium batches |
More suitable for low to medium-volume production |
Precision & Surface Quality |
High precision and excellent surface finish |
Moderate precision, usually requires secondary machining |
Budget & Lead Time |
Suitable for projects that can accommodate higher mold costs and prioritize quality |
Lower cost, smaller mold investment, more flexible delivery |
Conclusion
In summary, both investment casting and sand casting have their respective strengths and limitations:
- Investment Castingis ideal for small to medium-sized parts with complex geometries, high precision, and smooth surface finishes. It is particularly advantageous for medium to high-volume production or high-value components.
- Sand Castingis better suited for large or very large parts with simple structures and flexible production volumes. It also handles high-melting-point or specialty materials effectively.
Choosing the right casting process in a project not only affects part quality and production efficiency but also directly impacts cost and lead time. Engineers, procurement managers, and OEM design teams should make decisions based on part size, geometric complexity, material, production volume, precision requirements, and budget to ensure a successful outcome.
For uncertain projects or complex components, it is recommended to consult with professional casting suppliers during the design phase. This allows for customized process solutions and cost evaluations, helping to reduce risk, optimize efficiency, and ensure on-time delivery.
FAQs
Q1: Which casting method is more cost-effective?
A1: For low-volume or one-off production, sand casting is generally cheaper due to its simple and quick mold-making process. For medium to high-volume production or complex parts, investment casting has higher mold costs, but the mold amortization per part is lower, the accuracy is higher, and secondary machining is reduced—making it increasingly cost-effective in batch production.
Q2: Which process is better for large parts?
A2: Sand casting can accommodate almost any size, making it ideal for large structural components. Investment casting is usually limited by the size of the wax pattern and ceramic shell, so it is not suitable for very large parts.
Q3: How significant is the precision difference between sand casting and investment casting?
A3: Investment casting offers high precision and excellent surface finish, reducing the need for secondary machining. Sand casting has lower precision and typically requires machining to meet exact specifications.
Q4: Can investment casting use high-melting-point materials?
A4: Investment casting works with a variety of alloys. However, for very large parts or extremely high-melting-point materials, sand casting is generally more suitable.
Q5: Which process is recommended for low-volume custom parts?
A5: Low-volume production is usually more economical with sand casting, especially for large or simple parts.
Q6: How can I quickly determine which casting process to choose?
A6: Refer to the decision framework outlined in this article, evaluating part size, complexity, material, production volume, precision, and budget. For complex or high-value projects, consulting a professional casting supplier for a customized solution is recommended.
