What Is CNC Machining? A Practical Guide for Buyers

CNC machining is a subtractive manufacturing process in which pre-programmed computer software controls machine tools — mills, lathes, routers, and similar equipment — to cut raw material into a finished part. The “CNC” stands for Computer Numerical Control: the machine reads a coordinate-based program and executes each cutting move without a handwheel or manual operator input.

That definition takes one sentence. What matters if you are the person ordering parts is different: which parts belong on which machine, what tolerance your drawing should actually call out, what the quote will be driven by, and what a good supplier checks in your CAD file before cutting metal.

This guide covers CNC machining from the buyer’s side — how the process works, what it can hold for accuracy, what drives cost, and how to prepare your files so your first quote comes back useful instead of full of questions.

Ⅰ. What Is CNC Machining?

CNC machining removes material from a solid block, bar, or rod — called the workpiece or blank — using rotating cutting tools guided by programmed toolpaths. A typical CNC sequence runs like this:

1. A CAD model defines the part geometry.

2. CAM software converts that geometry into tool paths — coordinate-based instructions for tool position, spindle speed, and feed rate.

3. The CNC controller executes those paths, moving the tool or the workpiece along machine axes.

4. The machine repeats every move identically across every part in the batch.

Two properties make CNC machining the default choice for precision metal parts:

• Repeatability. Once the program is proven, part 500 matches part 1. This is what makes CNC economical at batch sizes where manual machining would drift.
• Accuracy. Modern CNC machines hold tolerances that manual operations cannot repeat — typically ±0.01–0.05 mm (±0.0004–0.002 in) as standard, tighter on critical features.

CNC is a control method, not a single process. What is a CNC machine, exactly? Any machine tool — mill, lathe, router, grinder, or EDM machine — whose motion is governed by a computer numerical controller. That is why “CNC machining” as a keyword covers so much ground: the machine type determines what geometry you get, and the CNC control determines consistency.

Ⅱ. How Does CNC Machining Work? From CAD File to Finished Part

Understanding the CNC machining process helps you see where quotes come from and where projects stall. Five stages:

1. CAD Model and Drawing

You supply a 3D model (STEP, IGES, or Parasolid are standard) plus a 2D drawing when tolerances, surface finish requirements, or thread specs need to be explicit. The model defines geometry; the drawing defines what “good” means. If a feature’s tolerance is not on the drawing, the shop will apply its general tolerance — which may or may not match your intent.

2. DFM Review

Before quoting, the supplier’s engineering team checks the design against machine capabilities: can tools reach every feature, are walls thick enough, are internal radii manufacturable, is the tolerance achievable in the chosen material. A DFM review at this stage costs nothing and prevents the most expensive category of manufacturing failure — discovering a design issue after material is already cut.

3. Programming and Setup

A CAM programmer selects tools, cutting speeds, and workholding; the machine operator fixtures the blank. Setup time is a fixed cost per batch — one reason a 10-part order costs more per part than a 1,000-part order.

4. Machining

The machine executes roughing passes (removing bulk material quickly) then finishing passes (holding final dimensions and surface finish). Critical dimensions are measured in-process or between operations.

5. Inspection and Finishing

Final parts are inspected — CMM measurement for critical features — then deburred, surface-finished if required, and shipped. For regulated industries, this stage also produces the documentation: dimensional reports, material certificates, first article inspection (FAI).

Ⅲ. Types of CNC Machines and What They Make

The machine type matches part geometry — this single decision drives most of your cost.

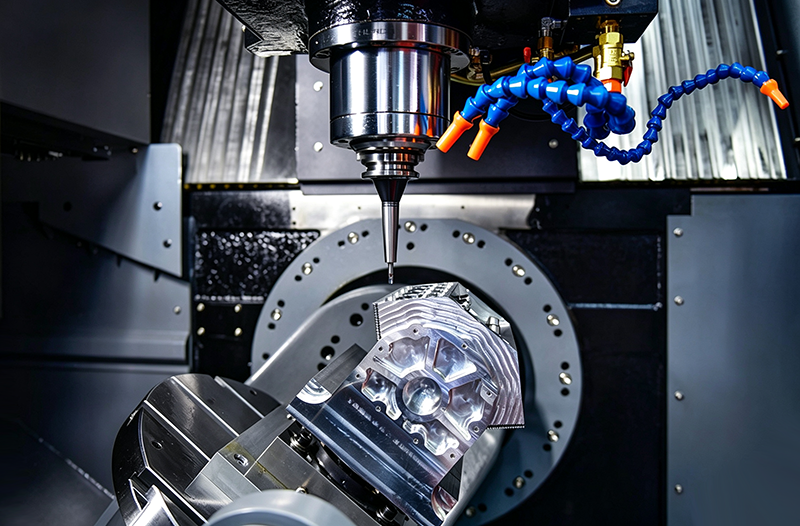

A 5-axis CNC machine adds two rotary axes to the standard three linear ones, so complex geometry like turbine blades, impellers, and angled features can be finished in one setup instead of three or four — fewer setups means tighter accumulated tolerance and lower cost.

For a deeper comparison of the two most common machine types, see [Lathe vs Mill: Differences, Tolerances & Costs] — the short version: if the part is mostly round, it belongs on a lathe; if it has pockets, flats, and 3D contours, it belongs on a mill; if it has both, ask about mill-turn.

Ⅳ. Materials Used in CNC Machining

Almost any solid engineering material can be CNC machined. The practical question is machinability — how a material behaves under a cutting tool — because it drives both cost and achievable tolerance.

Two practical notes:

• Aluminum machines roughly 3–4× faster than stainless steel and 5–8× faster than titanium in typical cutting data. If your part does not need the properties of an exotic material, choosing 6061 over Ti-6Al-4V can cut machining cost more than any design change.
• Plastics machine quickly but hold tolerance differently — they move with temperature and humidity. Tight tolerances on large plastic parts need material selection thought through with the supplier.

Ⅴ. CNC Machining Tolerances and Surface Finishes

Tolerance is where drawings and quotes connect. General industry standards for CNC machining:

Three rules keep tolerance from inflating your quote:

1. Tolerance only critical features. A bearing bore needs a tight tolerance; a cosmetic outside face usually does not. Tight tolerances applied blanket-wide add finishing passes, inspection time, and scrap risk across every dimension on the drawing.

2. Use general tolerances for the rest. ISO 2768-mK or equivalent covers non-critical features at no cost premium.

3. Match tolerance to material and geometry. A ±0.005 mm callout on a thin plastic wall or a long slender feature is asking for scrap. When in doubt, ask the supplier what the geometry can realistically hold — before the drawing is finalized.

For a full breakdown of tolerance levels and their cost multipliers, see the [Precision Machining Buyer’s Guide].

Ⅵ. What Drives CNC Machining Cost

Quotes are not arbitrary — they respond to specific part attributes. The usual drivers, ranked by impact:

The single most effective cost reduction is free: apply tolerances only where function demands them and confirm that features are manufacturable at the DFM stage. A design revision before cutting is nearly always cheaper than a revision after scrap.

Ⅶ. What DFM Feedback Catches Before Quoting

This is the stage most “what is CNC machining” guides skip — and the one that saves the most money.

When a supplier runs DFM analysis on your CAD file, they are checking whether the design can be manufactured as drawn, at the quoted cost, in the stated material. Typical findings:

• Wall thickness below material limits. Thin walls flex under cutting force and vibrate, causing chatter marks and dimensional drift.
• Internal corner radii too small for standard tools. Every internal corner needs a radius at least as large as the tool that cuts it. Sharp internal corners require EDM, which changes the cost model entirely.
• Tolerances tighter than the process holds reliably. Over-toleranced features get flagged — or should — before they generate scrap.
• Features that need multiple setups. A hole at an odd angle to all primary faces might need a 5-axis machine or a custom fixture. Sometimes a small design change eliminates an entire setup.
• Deep pockets with high aspect ratios. Long, slender tools deflect; deep pockets need specialized tooling and slower passes.
• Missing or ambiguous drawing callouts. Threads, surface finishes, and edge treatments that the model does not capture.

A supplier that returns a quote with no DFM feedback and no questions is either exceptionally efficient or not looking. The suppliers worth working with come back with comments — because the alternative is discovering the issue at inspection.

Ⅷ. How to Prepare Your Files for a CNC Quote

The fastest way to a useful quote is a complete RFQ. What suppliers need:

• 3D model in STEP, IGES, or Parasolid — the universal formats. Native CAD files work but add a conversion step.
• 2D drawing with GD&T when tolerances, finishes, or thread specs are critical.
• Material specification — grade, not just family (“6061-T6” not “aluminum”; “316L” not “stainless”).
• Quantity and batch plan — quoting 10 parts now and 10,000 later changes the recommended process and price.
• Surface finish and post-processing — anodizing, painting, heat treatment, deburr level.
• Lead time constraint — if the part is needed in 5 days versus 3 weeks, that changes routing options and price.

What slows quotes down: models without drawings for tolerance-critical parts, materials specified as “any steel will do,” and requests with no quantity. Each of these forces a back-and-forth round before the real quote can even start.

Ⅸ. How to Evaluate CNC Machining Services

For a full evaluation framework, see the [Precision Machining Buyer’s Guide] supplier chapter. The short checklist for comparing CNC machining services:

• Capabilities match. 3/4/5-axis milling, turning, mill-turn, grinding, EDM — do they run the processes your part needs, or will it be subcontracted?
• Quality system. ISO 9001 as a baseline; AS9100 for aerospace, ISO 13485 for medical, IATF 16949 for automotive.
• Inspection equipment. CMM capability and willingness to provide dimensional reports — not just “we check every part.”
• DFM support. Engineering feedback on your drawing before quoting, not after problems.
• Material traceability. Certificates with shipments when your application requires them.
• Communication. English-language engineering contact, response time, and clear project tracking — the factor most consistently underestimated in offshore sourcing.

Ⅹ. When CNC Machining Is Not the Answer

CNC is the most versatile metal process, but not always the right one:

• Very high volumes of simple parts. Once annual volume justifies tooling, die casting or injection molding (for plastics) beats machining on per-piece cost.
• Extremely complex internal geometry. Lattice structures and internal channels that tools cannot reach belong on metal 3D printing (DMLS).
• Sheet-metal forms. Enclosures and brackets made from thin sheet are laser-cut and bent, not machined from solid — a different process family with its own cost model.
• One-off hobby needs. If the part does not need precision or repeatability, manual machining or fabrication services cost less.

The decision point is volume and geometry. CNC machining dominates the prototype-to-medium-batch range where tooling investment is not justified and precision matters.

Conclusion

So, what is CNC machining? It is a process that uses computer-controlled cutting tools to turn raw material into finished parts, with repeatability manual processes cannot match. For the buyer, the decisions that matter are practical: match the machine type to part geometry, tolerance only what function demands, and get DFM feedback before material is cut.

The fastest way to start is to put a real drawing in front of a supplier. Upload your CAD files to Keywin for a quote with DFM feedback — you will see process routing, tolerance risks, and cost drivers for your specific part before anything is cut.
